12V Fluorescent Tube Inverter 1


From Chrissi ZR6CBP

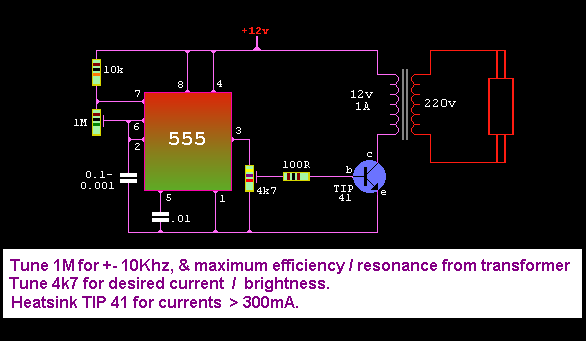

Very Easy Fluorescent Tube Inverter Circuit 12V DC to 220V AC 6 - 20 W
Dogpile Search

Tune 1M for 10 KHz, & maximum efficiency / resonance from transformer.
Tune 4k7 for desired current / brightness.
Heatsink TIP 41 for currents > 300 mA.
